Stretch Mujoco

Python 3.10 pre-commit Code style: black

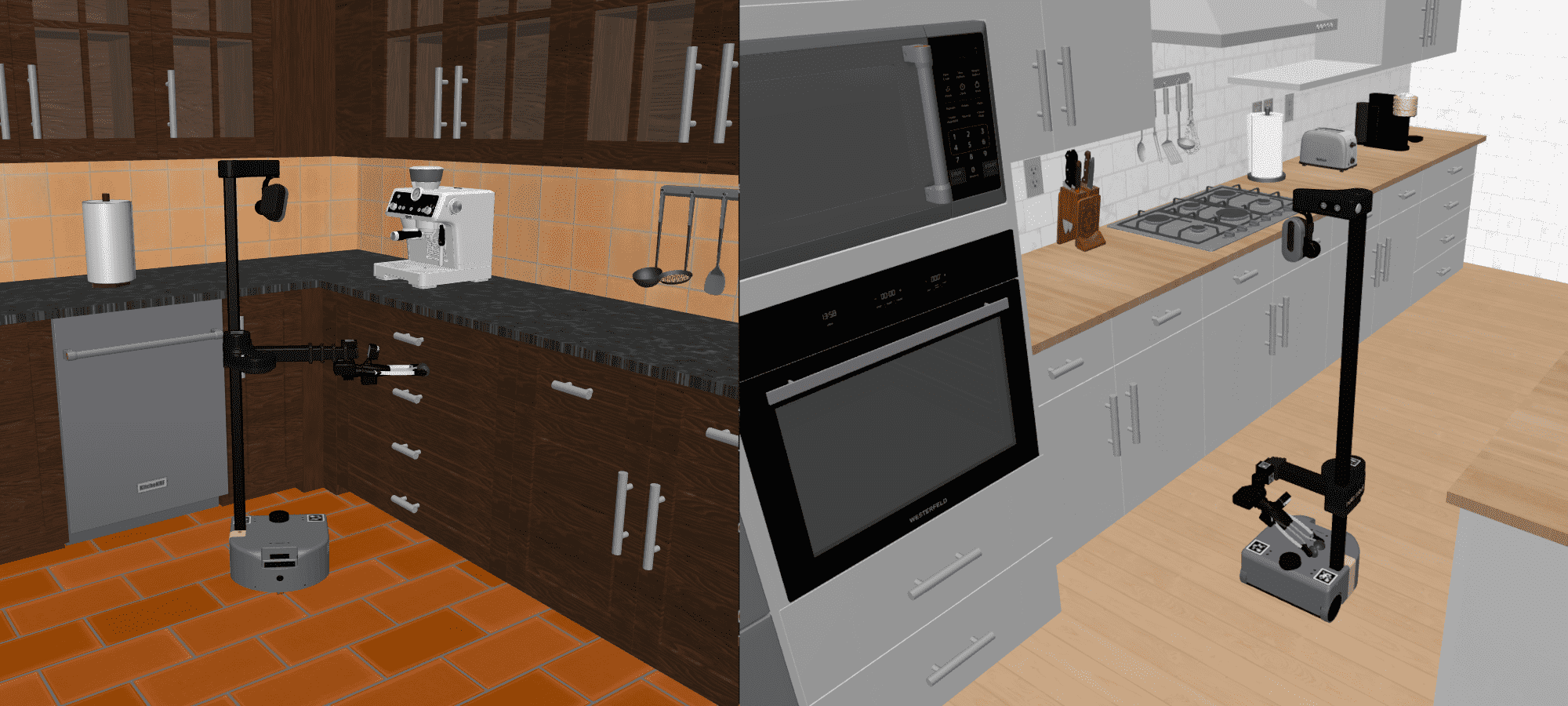

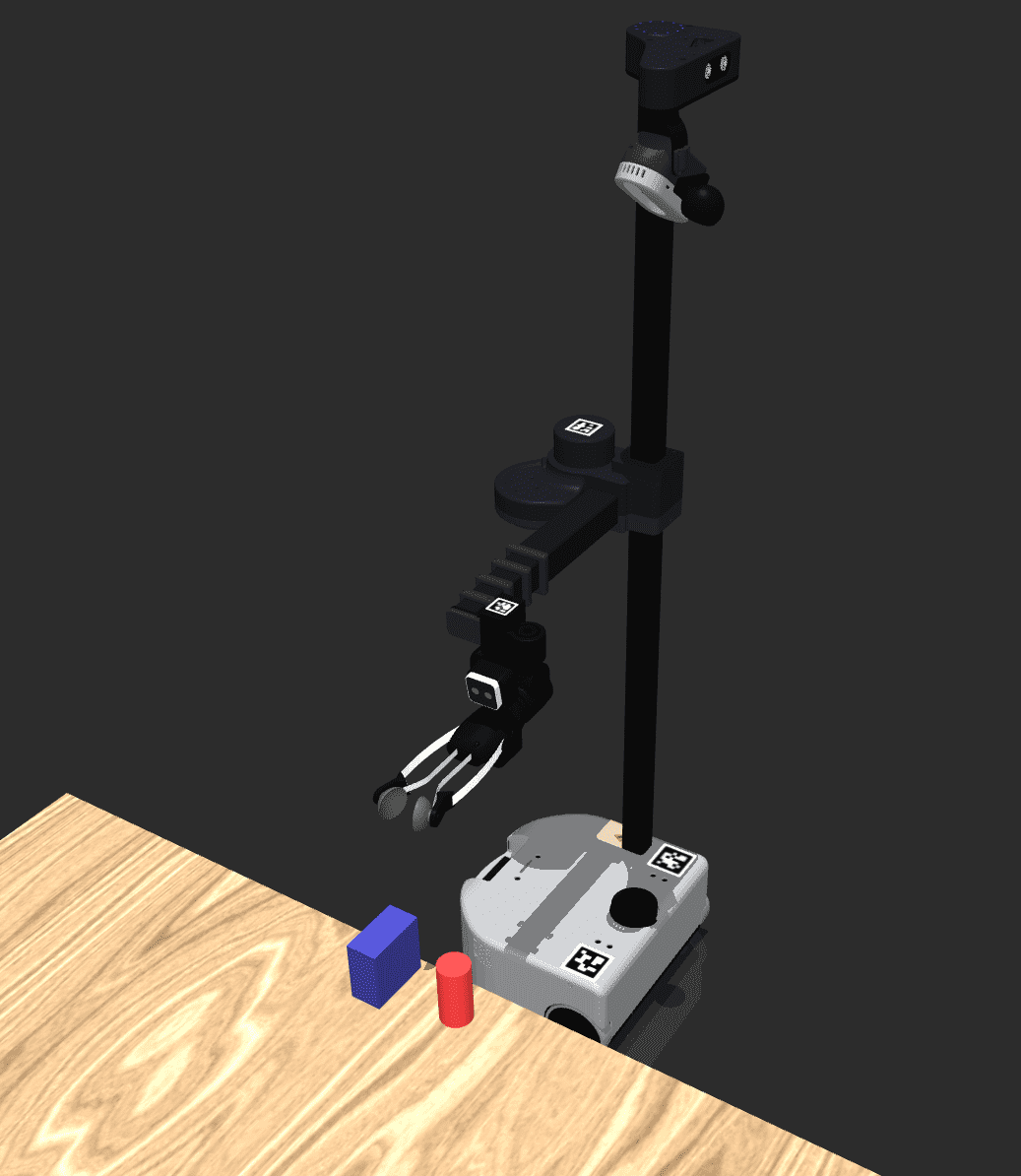

This library provides a simulation stack for Stretch, built on MuJoCo. There is position control for the arm, head, and gripper joints, velocity control for mobile base, calibrated camera RGB + depth imagery, 2D spinning lidar scans, and more. There is a visualizer that supports user interaction, or a more efficient headless mode. There is a ROS2 package, built on this library, that works with Nav2, Web Teleop, and more. There is 100s of permutations of Robocasa-provided kitchen environments that Stretch can spawn into. The MuJoCo API can be used for features like deformables, procedural model generation, SDF collisions, cloth simulation, and more.

Check out the highlight reel for features that have been recently added.

Getting Started

Start with Google Colab:

  • Getting Started Tutorial Open In Colab

or follow these instructions on your computer:

First, install uv. Uv is a package manager that we'll use to run this project.

Then, clone this repo:

git clone https://github.com/hello-robot/stretch_mujoco --recurse-submodules
cd stretch_mujoco

If you've already cloned the repo without --recurse-submodules, run git submodule update --init to pull the submodule.

Then, install this repo:

uv venv
uv pip install -e .

Lastly, run the simulation:

uv run launch_sim.py

To exit, press Ctrl+C in the terminal.

On MacOS, if mjpython fails to locate libpython3.10.dylib and libz.1.dylib, run these commands:

# Before proceeding, please reload your terminal and/or IDE window, to make sure the correct UV environment variables are loaded.

source .venv/bin/activate

# When `libpython3.10.dylib` is missing, run:
PYTHON_LIB_DIR=$(python3 -c 'from distutils.sysconfig import get_config_var; print(get_config_var("LIBDIR"))')
ln -s "$PYTHON_LIB_DIR/libpython3.10.dylib" ./.venv/lib/libpython3.10.dylib

# When `libz.1.dylib` is missing, run:
export DYLD_LIBRARY_PATH=/usr/lib:$DYLD_LIBRARY_PATH

Example Scripts

Keyboard teleop

uv run examples/keyboard_teleop.py

Gamepad teleop

Control Stretch in simulation using any xbox type gamepad (uses xinput)

uv run examples/gamepad_teleop.py

Robocasa environments

# Setup
uv pip install -e ".[robocasa]"
uv pip install -e "robocasa@third_party/robocasa"
uv pip install -e "robosuite@third_party/robosuite"
uv run third_party/robosuite/robosuite/scripts/setup_macros.py
uv run third_party/robocasa/robocasa/scripts/setup_macros.py
uv run third_party/robocasa/robocasa/scripts/download_kitchen_assets.py

# Run sim
uv run examples/robocasa_environment.py

Ignore any warnings.

Writing Code

Use the StretchMujocoSimulator class to:

  • start the simulation
  • position control the robot's ranged joints
  • velocity control the robot's mobile base
  • read joint states
  • read camera imagery

Try the code below using uv run ipython. For advanced Mujoco users, the class also exposes the mjModel and mjData. See the official Mujoco documentation.

from stretch_mujoco import StretchMujocoSimulator

if __name__ == "__main__":
    sim = StretchMujocoSimulator()
    sim.start(headless=False) # This will open a Mujoco-Viewer window

    # Poses
    sim.stow()
    sim.home()

    # Position Control
    sim.move_to('lift', 1.0)
    sim.move_by('head_pan', -1.1)
    sim.move_by('base_translate', 0.1)

    sim.wait_until_at_setpoint('lift')
    sim.wait_while_is_moving('base_translate')

    # Base Velocity control
    sim.set_base_velocity(0.3, -0.1)

    # Get Joint Status
    from pprint import pprint
    pprint(sim.pull_status())
    """
    Output:
    {'time': 6.421999999999515,
     'base': {'x_vel': -3.293721562016785e-07,'theta_vel': -3.061556698064456e-05},
     'lift': {'pos': 0.5889703729548038, 'vel': 1.3548342274419937e-08},
     'arm': {'pos': 0.09806380391427844, 'vel': -0.0001650879063921366},
     'head_pan': {'pos': -4.968686850480367e-06, 'vel': 3.987855066304579e-08},
     'head_tilt': {'pos': -0.00451929555883404, 'vel': -2.2404905787897265e-09},
     'wrist_yaw': {'pos': 0.004738908190630005, 'vel': -5.8446467640096307e-05},
     'wrist_pitch': {'pos': -0.0033446975569971366,'vel': -4.3182498418896415e-06},
     'wrist_roll': {'pos': 0.0049449466225058416, 'vel': 1.27366845279872e-08},
     'gripper': {'pos': -0.00044654737698173895, 'vel': -8.808287459130369e-07}}
    """

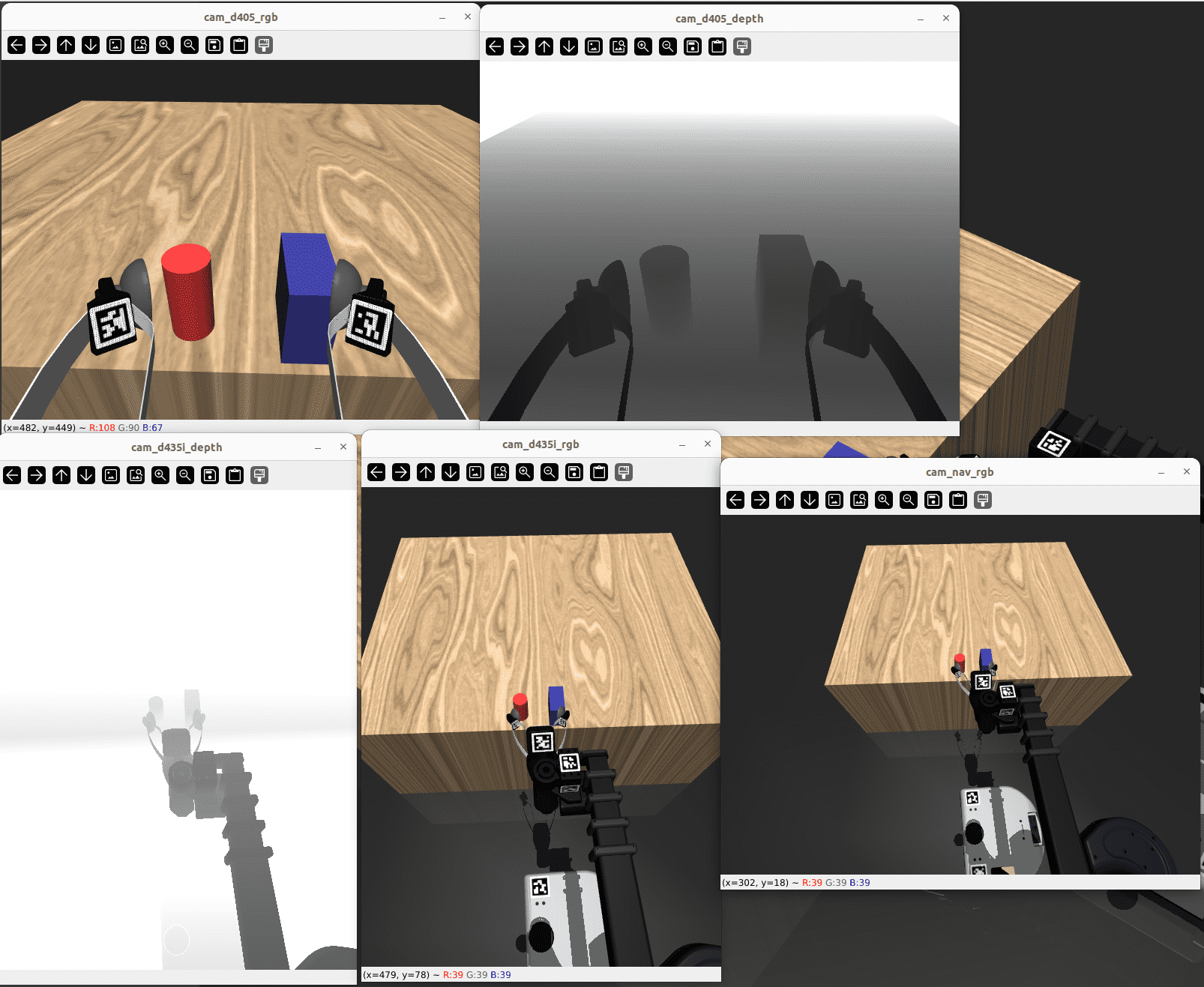

    # Get Camera Frames
    camera_data = sim.pull_camera_data()
    pprint(camera_data)
    """
    Output:
    {'time': 80.89999999999286,
     'cam_d405_rgb': array([[...]]),
     'cam_d405_depth': array([[...]]),
     'cam_d435i_rgb': array([[...]]),
     'cam_d435i_depth': array([[...]]),
     'cam_nav_rgb': array([[...]]),
     'cam_d405_K': array([[...]]),
     'cam_d435i_K': array([[...]])}
    """

    # Kills simulation process
    sim.stop()

Note that the if __name__ == "__main__": guard is necessary, as explained in the Python Docs.

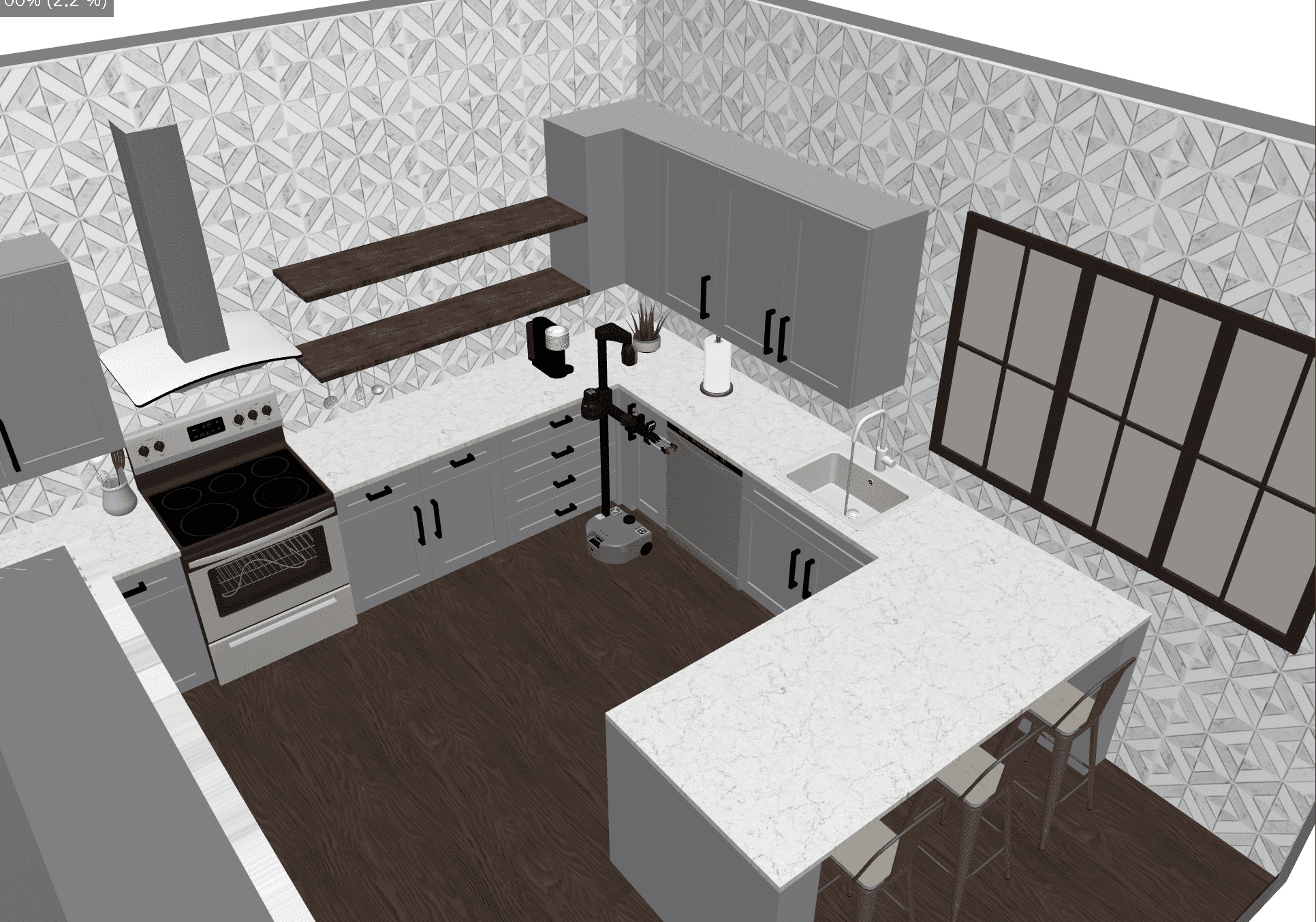

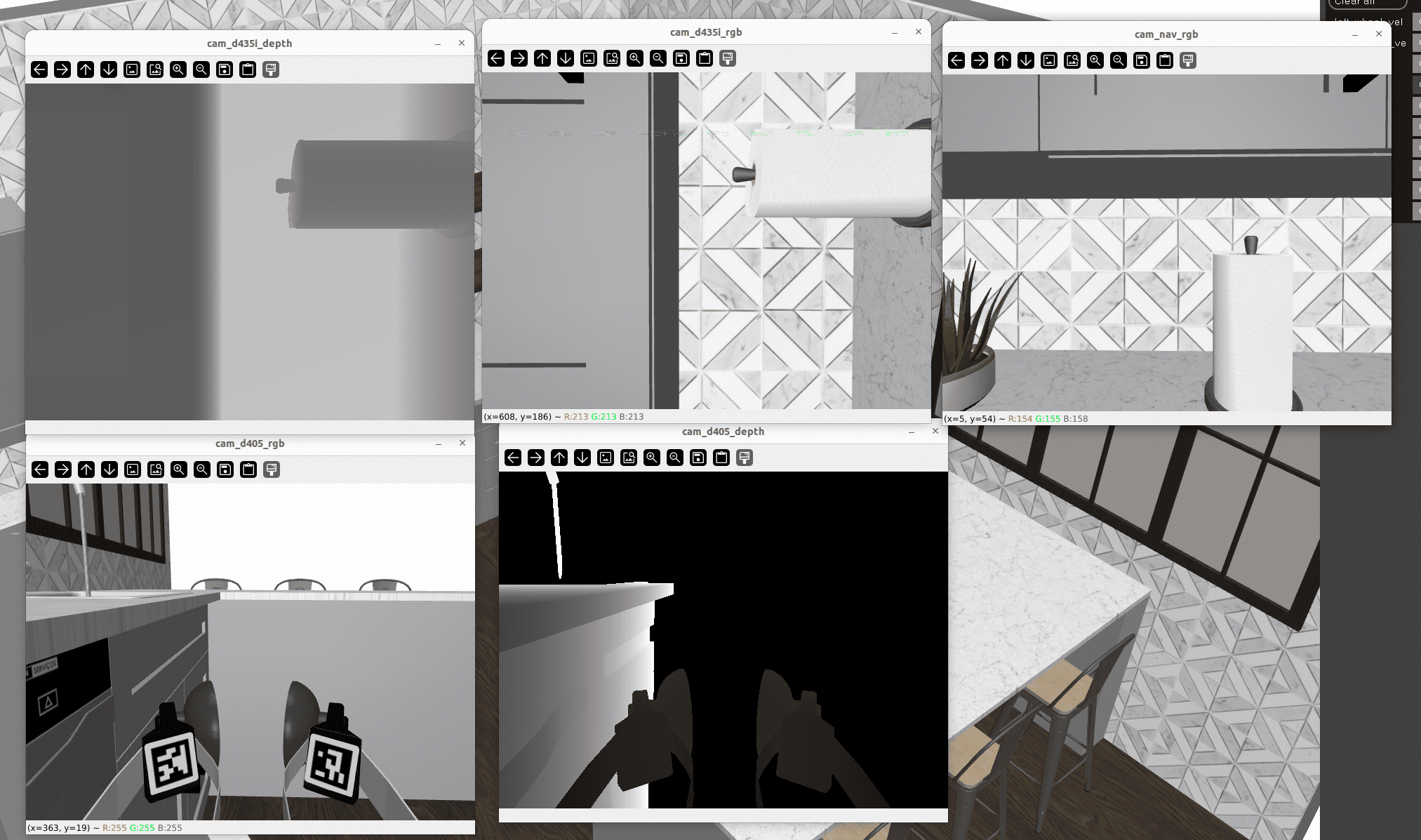

Loading Robocasa Kitchen Scenes

The stretch_mujoco.robocasa_gen.model_generation_wizard() method gives you:

  • Wizard/API to generate a kitchen model for a given task, layout, and style.
  • If layout and style are not provided, it will take you through a wizard to choose them in the terminal.
  • If robot_spawn_pose is not provided, it will spawn the robot to the default pose from robocasa fixtures.
  • You can also write the generated xml model with absolutepaths to a file.
from stretch_mujoco import StretchMujocoSimulator
from stretch_mujoco.robocasa_gen import model_generation_wizard

# Use the wizard:
model, xml, objects_info = model_generation_wizard()

# Or, launch a specific task/layout/style
model, xml = model_generation_wizard(
    task=<task_name>,
    layout=<layout_id>,
    style=<style_id>,
    wrtie_to_file=<filename>,
)

sim = StretchMujocoSimulator(model=model)
sim.start()

ROS2

You can use this simulation in ROS2 using the stretch_simulation package in stretch_ros2.

Docs

Check out the following documentation resources:

Feature Requests and Bug reporting

All the enhancements/missing features/Bugfixes are tracked by Issues filed. Please feel free to file an issue if you would like to report bugs or request a feature addition.

Acknowledgment

The assets in this repository contain significant contributions and efforts from Kevin Zakka and Google Deepmind, along with others in Hello Robot Inc. who helped us in modeling Stretch in Mujoco. Thank you for your contributions.
